Use:

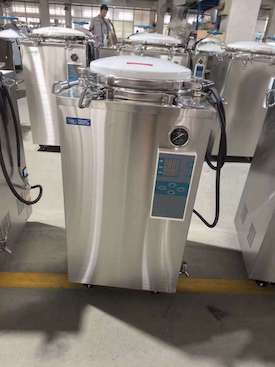

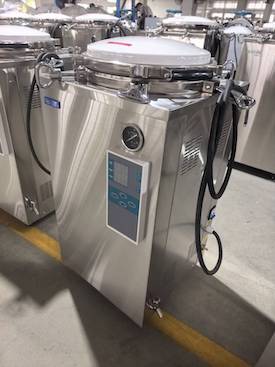

The vertical pressure steam sterilizers are assembled with heating system, microcomputer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.
Charcteristucs:
- Fully stainless steel structure.
- LED display of working status, touch type key.
- Auto discharge the cool air, and steam discharging automatically after sterilization.
- Automatically shut off with beep reminding after sterilization.
- Easy to operate, safe and reliable.
- With two stainless steel sterilizing baskets.
-
The drying system is optional for 120L and 150L size
Tecnical data:
MODEL |
LS-35LD |
LS-50LD |
LS-75LD |
LS-100LD |
LS-120LD |
LS-150LD |
Technical Data |
Chamber volume |
35L
φ318×450mm |
50L
φ340×550mm |
75L
φ400×600mm |
100L
φ440×650mm |
120L
φ480×660mm |
150L
φ510×740mm |
Working pressure |
0.22Mpa |
Working temperature |
134℃ |
Max.working pressure |
0.23Mpa |
Heat average |
≤±1℃ |
Timer range |
0-99min/0-99hour59min |
Temperature adjust range |
105-134℃ |
View this product in Yourtube: https://youtu.be/zdmYjXhXqJM |
|
