| Features:

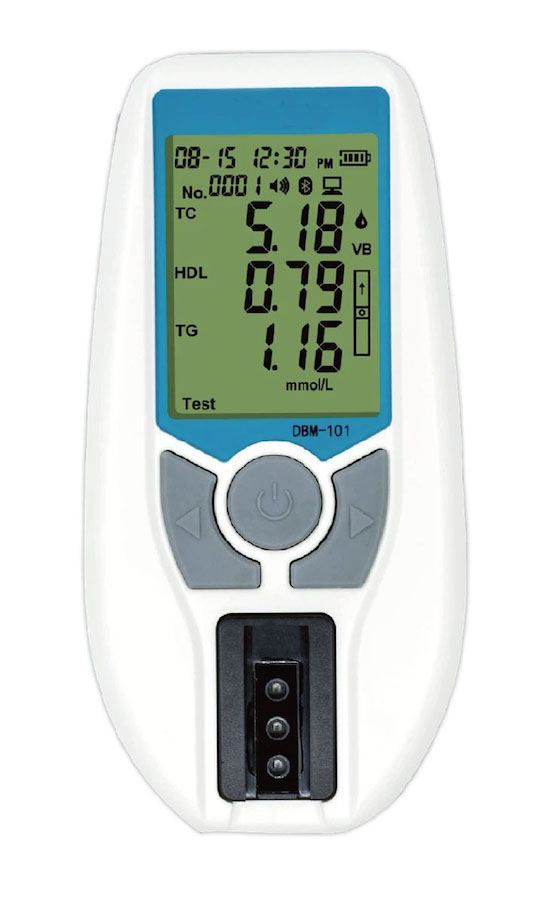

DBM-101 Dry Biochemical Analysis Meter is designed to test Blood Lipid and Renal Function. It could test Total Cholesterol ( TC), High-density lipoprotein cholesterol (HDL), Triglyceride (TG), Low-density lipoprotien cholesterol (LDL), TC/HDL ratio, and Uric Acid (UA), Creatinine (CR), Urea (UR).
Specifications:
Product Name |
Dry Biochemical Analysis System |
Model No. |
DBM-101 |
Methodology |
Reflectance Photometer |
Analysis Item |
Total Cholesterol, High Density Lipoprotein, Triglyceride
Uric Acid, Creatinine, Urea |
Measurement Range |
TL: 2.59-12.93mmol/L
(100-500mg/dL, 1mmol/L=38.66mg/dL)
HDL: 0.39-2.59mmol/L
(15-100mg/dL, 1mmol/L=38.66mg/dL)
TG: 0.51-7.34mmol/L
(45-650mg/dL, 1mmol/L=88.6mg/dL)
UA: 0.090-1.200mmol/L (1.51-20.17mg/dL)
CR: 0.044-1.320mmol/L (0.50-14.93mg/dL)
UA: 0.90-40.00mmol/L (5.41-240.2mg/dL) |
Measurement Unit |
mmol/L, mg/dL |
Specimen |
Whole blood (peripheral and venous human whole blood), plasma and serum |
Specimen Volume |
Single Content Test: 10μL, 3-in-1 Test: 35μL |
Test Time |
Blood Lipid: in 120 seconds; Renal Function: in 300 seconds |
Power Source |
1200mAh Built-In Lithium Battery |
Battery Life |
After cycle charge 300 times, electric quantity reduce 30% |
Memory |
500 records |
Bluetooth |
Bluebooth to Sync Data with Phone or PC |
Automatic Shut Off |
5 Minutes after Last Use |
Meter Size |
135MM * 66MM * 19MM |
Meter Net Weight |
90G |
Meter Storage Conditions |
0-55°C; ≤90% RH |
System Operating Conditions |
10-40°C;≤90% RH; Seal-Level ≤2000M |
Meter Warranty Period |
2 Years |
Meter Shelf Life |
4 Years |
|
|
